General

The elements and subnodes supported by Onventis are listed in the tables. Those which differ from BMEcat Standard 1.2 appear in red font.

Subnodes with their own elements have a blue background and double border. By clicking on the linked name of the subnode, you can jump to the table.

Onventis-specific fields that do not exist in BMEcat Standard have a green background.

Further information and notes can be found in the footer.

The blue arrow below the tables can be used to jump back to the table of contents.

NODE
Element	Data type	Description	Length	Mandatory
NAME	String	Element with deviation in maximum field length	100	X
LINKED FIELD		Linked subnode
ONV_DATA	String	Onventis-specific field	100	X

General structure of the BMEcat catalog

A BMEcat catalog consists of the elements “HEADER” and “T_NEW_CATALOG,” which must be present within the main “BMECAT” element. These two elements are explained in the following sections.

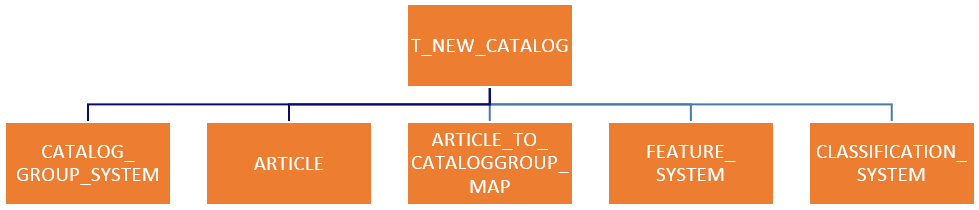

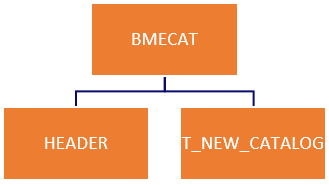

Figure 1 : General structure of the BMEcat catalog

HEADER

The header of the catalog must only contain the information relating to the catalog which is specified in “CATALOG.” It is also possible to predefine the directory in which the attachments are located. All other BMEcat Standard elements are ignored, since they must be configured in the import job. This section therefore only describes the structure of the “CATALOG” element.

Catalog information — CATALOG

CATALOG
Element	Data type	Description	Length	Mandatory
LANGUAGE	String	Defines the language of the catalog, e.g. “DEU”	3	X
CATALOG_ID	String	Unique identifier of the catalog	20	X
CATALOG_VERSION	String	Version of the catalog. Only for T_NEW_CATALOG	7	X
MIME_ROOT	String	Directory or URL to which the information in MIME_SOURCE points	100

Example :

<CATALOG_ID>123456789</CATALOG_ID>

<CATALOG_VERSION>1.0</CATALOG_VERSION>

<MIME_ROOT>/Mime files/</MIME_ROOT>

</CATALOG>

</HEADER>

Catalog structure — T_NEW_CATALOG

The structure of the catalog can be divided into the categories that are imported using the element “CATALOG_GROUP_SYSTEM,” the items, the “ARTICLE” element and the assignment of items to a category using the element “ARTICLE_TO_CATALOGGROUP_MAP.”

Catalog structure

Categories — CATALOG_GROUP_SYSTEM

CATALOG_GROUP_SYSTEM contains all of the categories of the catalog that are imported using the element “CATALOG_STRUCTURE.” This element must be specified for each category.

The category type must be passed for each “CATALOG_STRUCTURE” element. This can be achieved using type=”…”, e.g. <CATALOG_STRUCTURE type=”leaf”>

The following values can be passed as types:

· “root” à Refers to the main category under which all other categories are arranged. It must be present once, but can be ignored during imports.

· “node” à Category that contains additional subcategories instead of items.

· “leaf” à Lowest category, where items are stored.

CATALOG_STRUCTURE
Element	Data type	Description	Length	Mandatory
GROUP_ID	String	Unique number of the category	50	X
GROUP_NAME	String	Category name to be displayed in the system	50	X
PARENT_ID	String	Number of the parent category. 0 must be entered for the main category that has no parent category	50	X
GROUP_ORDER	String	Sequence in which categories are displayed, in ascending order	5
MIME_INFO		Attachment of images to be displayed in the system

Example :

<CATALOG_STRUCTURE type=”root”>

<GROUP_ID>1234567</GROUP_ID>

<GROUP_NAME>Root</GROUP_NAME>

<GROUP_DESCRIPTION>Root</GROUP_DESCRIPTION>

<PARENT_ID>0</PARENT_ID>

</CATALOG_STRUCTURE>

<CATALOG_STRUCTURE type=”node”>

<GROUP_ID>585861654</GROUP_ID>

<GROUP_NAME>Hand tools</GROUP_NAME>

<GROUP_DESCRIPTION />

<PARENT_ID>1234567</PARENT_ID>

</CATALOG_STRUCTURE>

<CATALOG_STRUCTURE type=”leaf”>

<GROUP_ID>112233</GROUP_ID>

<GROUP_NAME>Screwdriver</GROUP_NAME>

<GROUP_DESCRIPTION />

<PARENT_ID>585861654</PARENT_ID>

<MIME_INFO>

<MIME>

<MIME_TYPE>image/jpeg</MIME_TYPE>

<MIME_SOURCE>example.jpg</MIME_SOURCE>

<MIME_PURPOSE>normal</MIME_PURPOSE>

</MIME>

</MIME_INFO>

</CATALOG_STRUCTURE>

Item — ARTICLE

An item is defined using the element “ARTICLE.”

The mode=”delete” attribute can be used to specify that the item should be deleted. By way of derogation from the recommendation in BMEcat Standard, Onventis allows this in the node “T_NEW_CATALOG.”

ARTICLE
Element	Data type	Description	Length	Mandatory
SUPPLIER_AID	String	Supplier’s unique item number	32	X
ARTICLE_DETAILS		Contains all of the information that describes the item		X
ARTICLE_FEATURES		Features of the item
ARTICLE_ORDER _DETAILS		Information on conditions such as order units etc.
ARTICLE_PRICE _DETAILS		Price information for the item
ARTICLE_REFERENCE		Assignment to a parent item.
MIME_INFO		Media data and file attachments for the item
USER_DEFINED _EXTENSIONS		Contains several Onventis-specific fields

ARTICLE_DETAILS

All the information that identifies or describes the item is stored in ARTICLE_DETAILS.

ARTICLE_DETAILS
Element	Data type	Description	Length	Mandatory
DESCRIPTION_SHORT	String	Title of the item	500	X
DESCRIPTION_LONG	String	Description of the item	10,000
SUPPLIER_ALT_AID	String	Additional item number. If this is passed, SUPPLIER_AID is not displayed as an item number.	35
EAN	String	European Article Number	35
MANUFACTURER_NAME	String	Manufacturer’s name	50
MANUFACTURER_AID	String	Manufacturer’s item number	35
BUYER_AID	String	Customer’s item number. In order to use this string, the customer must be selected during the import under “Numbers and material groups for customers”	35
ERP_GROUP_BUYER	String	Customer’s material group. In order to use this string, it is again necessary to select the customer as described for BUYER_AID	35
KEYWORD	String	Keywords that are included in the search	10,000
ARTICLE_ORDER	Integer	Order of display	3
ARTICLE_STATUStype=’others’	String	Identifies an item as a “special item” by means of an asterisk. The item will be displayed in first place. In order for this to happen, the value ” onventis-important” must be passed. “onventis-not-important” can be used to deactivate the identifier again via import.	50
ARTICLE_STATUStype=’core_sortiment’	String	Identifies an item as a “core range article” by means of a star or a custom logo. The item will be displayed in first place. In order for this to happen, the value ” onventis-important” must be passed. “onventis-not-important” can be used to deactivate the identifier again via import.	50
DELIVERY_TIME	Integer	Delivery time in days	6

ARTICLE_FEATURES

Multiple features of an item can be stored in ARTICLE_FEATURES. Each feature is stored using a FEATURE node.

ARTICLE_FEATURES
Element	Data type	Description	Length	Mandatory
FEATURE		Feature values		X

FEATURE

FEATURE
Element	Data type	Description	Length	Mandatory
FNAME	String	Unique feature name within the current feature group	500	X
FORDER	Integer	Order in which the features are to be displayed in the item	6
FUNIT	String	Unit of measurement for the feature	500
FVALUE	String	Value of the feature, can also be specified multiple times.	500	X

ARTICLE_ORDER_DETAILS

Details of the order conditions and packaging units for an item.

ARTICLE_ORDER_DETAILS *
Element	Data type	Description	Length	Mandatory
ORDER_UNIT	String	Quantity unit. If not specified, the organization’s default unit is used	20	X
NO_CU_PER_OU	Integer	The values from the two fields and ORDER_UNIT are used to build the packaging unit text [1]	6
CONTENT_UNIT	String		20	X
PRICE_QUANTITY	Integer	Pricing unit, default = 1	6
QUANTITY_MIN	String	Minimum order quantity, default = 1	18.4
QUANTITY_INTERVAL	Integer	Size of the order steps, e.g. in 100 steps	6

! Attention: Please pay attention to your customer’s specifications regarding the order and content units.

Optional: The entire node <ARTICLE_ORDER_DETAILS> and <ARTICLE_PRICE_DETAILS> can also be omitted in BMEcat. To do this, the option “no conditions” must be selected in the BCJob configuration and a corresponding condition file must be loaded afterwards. This allows you to maintain product information and condition information separately.

Example :

<ARTICLE_ORDER_DETAILS>

<ORDER_UNIT>Package</ORDER_UNIT>

<CONTENT_UNIT>Piece</CONTENT_UNIT>

<NO_CU_PER_OU>50</NO_CU_PER_OU>

<PRICE_QUANTITY>1</PRICE_QUANTITY>

<QUANTITY_INTERVAL>1</QUANTITY_INTERVAL>

</ARTICLE_ORDER_DETAILS>

ARTICLE_PRICE_DETAILS

Details of the item price.

ARTICLE_PRICE_DETAILS
Element	Data type	Description	Length	Mandatory
DATETIMEtype=”valid_start_date”	DateTime	Validity start date, format YYYY-MM-DD. Specified in the subnode <DATE>.	10
DATETIMEtype=”valid_end_date”	DateTime	Validity end date, format YYYY-MM-DD. Specified in the subnode <DATE>.	10
ARTICLE_PRICE		Item price information, can be present several times		X

ARTICLE_PRICE

The following rules are applied to find the node ARTICLE_PRICE:

If the currency and condition type are specified during the import, a search is carried out for the corresponding nodes (PRICE_CURRENCY and in node ARTICLE_PRICE in attribute price_type).

If no nodes are found, a search is only carried out for the condition type (in node ARTICLE_PRICE in attribute price_type).

If only the currency is specified during the import, a search is carried out for the currency; if no currency is found, a search is carried out for the node itself without special features.

If only the condition type is specified during the import, a search is always carried out for the condition type.


ARTICLE_PRICE
Element	Data type	Description	Length	Mandatory
LOWER_BOUND	Integer	Scaled quantities, 0 – 5 quantities possible, default = 1
PRICE_AMOUNT	Decimal	Scaled prices, 0 – 5 prices possible	18.4	X
TAX	Decimal	Tax rates, 0 – 5 tax rates possible (e.g. – 0.19 = 19%), default = 0	4.2
PRICE_CURRENCY		Ignored! The currency is defined during imports into the software interface.

Example :

<ARTICLE_PRICE_DETAILS>

</DATETIME>

</DATETIME>

<ARTICLE_PRICE price_type=”net_customer”>

<PRICE_AMOUNT>15.20</PRICE_AMOUNT>

<PRICE_CURRENCY>EUR</PRICE_CURRENCY>

<LOWER_BOUND>1</LOWER_BOUND>

</ARTICLE_PRICE>

<ARTICLE_PRICE price_type=”net_customer”>

<PRICE_AMOUNT>12.04</PRICE_AMOUNT>

<PRICE_CURRENCY>EUR</PRICE_CURRENCY>

<LOWER_BOUND>5</LOWER_BOUND>

</ARTICLE_PRICE>

</ARTICLE_PRICE_DETAILS>

ARTICLE_REFERENCE

This element can be used to represent variants of a main item. In order to do so, the item number of the main item must be stored for each variant item.

ARTICLE_ REFERENCE
Element	Data type	Description	Length	Mandatory
ART_ID_TOtype=’others’	String	Number of the main item. This ensures that items can be defined as variants of an item.Only type=’others’ is supported		X

MIME_INFO

MIME_INFO can be used to attach multiple images and files to an item. It must be possible to define each attachment using a MIME node.

MIME_INFO
Element	Data type	Description	Length	Mandatory
MIME		File attachment or item image		X

MIME

MIME
Element	Data type	Description	Length	Mandatory
MIME_SOURCE	String	File name of the attachment	200	X
MIME_PURPOSE	String	Intended useDefault = others, possible values: logo, normal, thumbnail, detail, data_sheet, others, seal	20
MIME_TYPE	String	Mime type of the attachment, e.g. image/jpeg, image/gif, application/pdf	30
MIME_DESCR	String	Title of the attachment. If not specified, the file name is used as the title	200

USER_DEFINED_EXTENSIONS

This node can be used to import additional Onventis-specific fields.

USER_DEFINED_EXTENSIONS
Element	Data type	Description	Length	Mandatory
UDX.ONV.GROUP_ARTICLE	Boolean	If this is set, the VARIANT_ARTICLE tag is not permitted. The value is not important; all that matters is whether the node is present or not	1
UDX.ONV.VARIANT_ARTICLE	Boolean	If this is set, the GROUP_ARTICLE tag is not permitted. The value is not important; all that matters is whether the node is present or not	1
UDX.ONV.CATALOG_NUMBER	String	Additional catalog numbers, multiple possible	35
UDX.ONV.ECLASS_ID	String	eClass number	35
UDX.ONV.UNSPSC_ID	String	UNSPSC number	35
UDX.ONV.SALES_MARK	String	Assigns 0-n item groups to the item	35
UDX.ONV.AVAILABILITY	Integer	Availability (traffic lights)0 — no display 5 — not available (red light) 10 — available on a conditional basis (amber light) 15 — available (green light)	2
UDX.ONV.PRICE_REMARK	String	External remark relating to the condition	10,000
UDX.ONV.DISPLAY_FEATURES/ UDX.ONV.FEATURE	String	List of feature numbers of the variant items (currently the feature title is used as the number) — if specified, only these features are displayed in the variant item list, 0-n possible	200
UDX.ONV.COUNTRY_OF_ORIGIN		(AF-Afghanistan, AL-Albania etc.)
UDX.ONV.CUSTOMS_TARIF_NUMBER		(existing numbers if is selectable)
UDX.ONV.CUSTOMS_WEIGHT
UDX.ONV.CUSTOMS_WEIGHT_TYPE		(0-g, 1-kg, 2-t).

Assignment of items to categories — ARTICLE_TO_CATALOGGROUP_MAP

The assignment of an item to a category is specified using this node; the information must therefore be provided for each item.

ARTICLE_TO_CATALOGGROUP_MAP
Element	Data type	Description	Length	Mandatory
ART_ID	String	Unique item number		X
CATALOG_GROUP_ID	String	Unique number of the category		X
ARTICLE_TO_CATALOGGROUP_MAP_ORDER		Order of presentation in the category

Feature group system — FEATURE_SYSTEM

This node is used to build a feature group system. In general, however, the features are read directly from the item in the ARTICLE_FEATURES node.

FEATURE_SYSTEM
Element	Data type	Description	Length	Mandatory
FEATURE_SYSTEM_NAME	String	Name of the feature group system	50	X
FEATURE_SYSTEM_DESCR	String	Description of the feature group system	10,000
FEATURE_GROUP		Feature groups		X

FEATURE_GROUP

FEATURE_GROUP
Element	Data type	Description	Length	Mandatory
FEATURE_GROUP_ID	String	Unique feature group number	35	X
FEATURE_GROUP_NAME	String	Classification group title	50	X
FEATURE_TEMPLATE type=’’		Features. Type=‘default‘ is ignored.		X

FEATURE_TEMPLATE

FEATURE_TEMPLATE
Element	Data type	Description	Length	Mandatory
FT_NAME	String	Title of the feature	60	X
FT_UNIT	String	Unit of the feature	20
FT_ORDER	Integer	Order of presentation	3

Example :

<FEATURE_SYSTEM>

<FEATURE_SYSTEM_NAME>Example</FEATURE_SYSTEM_NAME>

<FEATURE_SYSTEM_DESCR>FEATURE SYSTEM for documentation</FEATURE_SYSTEM_DESCR>

<FEATURE_GROUP>

<FEATURE_GROUP_ID>123</FEATURE_GROUP_ID>

<FEATURE_GROUP_NAME>Impact wrench</FEATURE_GROUP_NAME>

<FEATURE_TEMPLATE type=”free_entry”>

<FT_NAME>Striking mechanism</FT_NAME>

<FT_UNIT/>

<FT_ORDER>1</FT_ORDER>

</FEATURE_TEMPLATE>

<FEATURE_TEMPLATE type=”free_entry”>

<FT_NAME>Torque</FT_NAME>

<FT_UNIT>Nm</FT_UNIT>

<FT_ORDER>2</FT_ORDER>

</FEATURE_TEMPLATE>

<FEATURE_TEMPLATE type=”free_entry”>

<FT_NAME>Speed</FT_NAME>

<FT_UNIT>rpm</FT_UNIT>

<FT_ORDER>3</FT_ORDER>

</FEATURE_TEMPLATE>

<FEATURE_TEMPLATE type=”free_entry”>

<FT_NAME>Weight</FT_NAME>

<FT_UNIT>kg</FT_UNIT>

<FT_ORDER>4</FT_ORDER>

</FEATURE_TEMPLATE>

</FEATURE_GROUP>

</FEATURE_SYSTEM>

Classification system —CLASSIFICATION_SYSTEM

As with the FEATURE_SYSTEM, this can be used to create a classification system. Only fields from the subnode CLASSIFICATION_GROUPS are taken into account in Onventis.

CLASSIFICATION_GROUPS
Element	Data type	Description	Length	Mandatory
CLASSIFICATION_ GROUP		Classification group including features		X

CLASSIFICATION_GROUP

CLASSIFICATION_GROUP
Element	Data type	Description	Length	Mandatory
CLASSIFICATION_GROUP_ID	String	Classification group number	35	X
CLASSIFICATION_GROUP_NAME	String	Classification group title	50	X
CLASSIFICATION_ GROUP_FEATURE_ TEMPLATES		Classification group features		X

CLASSIFICATION_GROUP_FEATURE_TEMPLATES

Features can be assigned to the classification group using CLASSIFICATION_GROUP_FEATURE_TEMPLATES.

CLASSIFICATION_GROUP_FEATURE_TEMPLATES
Element	Data type	Description	Length	Mandatory
GROUP_FEATURE_ TEMPLATE		Classification group feature		X

GROUP_FEATURE_TEMPLATE

GROUP_FEATURE_TEMPLATE
Element	Data type	Description	Length	Mandatory
FT_IDREF	String	Title of the feature. Also used as a unique number (for the group).	35	X
FT_ORDER	Integer	Sequence	3
FT_UNIT	String	Unit of the feature	20

[1] 1 ORDER_UNIT = NO_CU_PER_OR CONTENT_UNIT (e.g. 1 package = 50 pieces)
