Incoterm Version in OpenTRANS and SAP

OpenTRANS interface Import and Export

For openTRANS Interface Import

openTRANS interface Imports now include the incoterm version as explained below:
- The changes are only in “OpenTrans/XSL_IN_OpenTrans_OrderResponse.xsl” converter file. The Remarks node is extended for incoterm version
- </ ORDER_PARTIES>
  ‹PRICE_CURRENCY>EUR</PRICE_CURRENCY>
  ‹REMARK type="Onv-Incoterm" >DPU</REMARK>
  ‹REMARK type="Onv-IncotermVersion" >2020</REMARK> - new tag for Incoterm Version
  ‹REMARK type="Onv-DeliveryTermsLocation">Incoterm location</REMARK>
  </ ORDERRESPONSE_INFO>
  </ ORDERRESPONSE_HEADER>

For openTRANS Interface Export

openTRANS interface Exports now include the incoterm version as explained below:
- In “OpenTrans/XSL_OUT_OpenTrans_Order.xsl” converter file, <TRANSPORT_REMARK> tag is extended for incoterm version
- <TRANSPORT>
  <INCOTERM>CFR</INCOTERM>
  <LOCATION>28383</LOCATION>
  <TRANSPORT_REMARK>2010</TRANSPORT_REMARK>
  </TRANSPORT>
- In “OpenTrans/XSL_OUT_OpenTrans_OrderChange.xsl” & “OpenTrans/XSL_OUT_OpenTrans_OrderResponse.xsl” converter file, if the Converter.XslParams.FakeTREX_Incoterm=false in parameters then Remarks tag is extended for incoterm version
- </ ORDER_PARTIES>
  ‹PRICE_CURRENCY>EUR</PRICE_CURRENCY>
  ‹REMARK type="Onv-Incoterm" >DPU</REMARK>
  ‹REMARK type="Onv-IncotermVersion" >2020</REMARK>
  ‹REMARK type="Onv-DeliveryTermsLocation">Incoterm location</REMARK>
  </ ORDERRESPONSE_INFO>
  </ ORDERRESPONSE_HEADER>
- and if Converter.XslParams.FakeTREX_Incoterm=true in parameters then Transport tag is extended for incoterm version
- <TRANSPORT>
  < INCOTERM>DPU</ INCOTERM>
  ‹LOCATION>Incoterm location</LOCATION>
  < TRANSPORT_REMARK>2020</TRANSPORT _REMARK>
  </TRANSPORT> </ ORDERRESPONSE_INFO>
  </ORDERRESPONSE _HEADER>

SAP Interfaces

SAP already supports Incoterms versioning in its IDOC (ORDERS05, CREMAS05, and PO-related documents). We have adjusted our system to ensure that we correctly transmit the Incoterm version (2010 or 2020) in the relevant fields.

ONV → SAP/ERP

(/ONV/ PO _CREATE1)

ExportXslResource: SAP/ONVENTIS/XSL_OUT_PO_Create1.xsl (SAP/SQL_OrderFull.xml)

Field Onventis	DB-Field Onventis	XML (added to standard logic, no parameters needed)	Type (SAP)
IncotermsVersion	IncotermsVersion; L: 4	Incotermsv	char4

Example:

<Poheader> ... <Incotermsv>2010</Incotermsv> (The node is transferred if a value is set in the GUI) ... </Poheader> <Poheaderx> ... <Incotermsv>X</Incotermsv> (Node in X-Structure is then also transferred like this) ... </Poheaderx>

Note: The node will be transferred as (<Incotermsv/>) if no value is set in the GUI & the node in X-Structure will then not be transferred.

(/ONV/PO_CHANGE)

ExportXslResources: SAP/ONVENTIS/XSL_OUT_PO_Change_Order.xsl (SAP/SQL_OrderFull.xml), SAP/ONVENTIS/XSL_OUT_PO_Change_SalesOrder.xsl (SAP/SQL_SalesOrder.xml)

Field Onventis	DB-Field Onventis	XML (added to standard logic, no parameters needed)	Type (SAP)
IncotermsVersion	IncotermsVersion; L: 4	Incotermsv	char4

Example:

<Poheader>
...
<Incotermsv>2010</Incotermsv> (The node is transferred if a value is set in the GUI)
...
</Poheader>
<Poheaderx>
...
<Incotermsv>X</Incotermsv> (Node in X-Structure is then also transferred like this)
...
</Poheaderx>/

Note: The node will be transferred as (<Incotermsv/>) if no value is set in the GUI & the node in X-Structure will then not be transferred.

(/ONV/BP_CREATE)

ExportXslResources: SAP/ONVENTIS/XSL_OUT_Supplier_BP_Create.xsl (SAP/ONVENTIS/SQL_Supplier.xml)
Added a parameter “Export_IncotermsVersion” with default value “false” - In this case nothing new will happen
If the parameter is set to “true”, added the XML node <IncoV> to the structure (see example)
The node will be transferred as (<IncoV>2020</IncoV>) if a value is set in the GUI
The node will be transferred as (<IncoV></IncoV>) if no value is set in the GUI

Field Onventis	DB-Field Onventis	XML	Type (SAP)
IncotermsVersion	IncotermsVersion; L: 4	IncoV	char4

Example:

<ItEkorg>
<item>
<Ekorg>1010</Ekorg>
<Ekgrp>003</Ekgrp>
<Zterm>0008</Zterm>
<Waers>EUR</Waers>
<IncoV>2020</IncoV> (if a value is set in the GUI)
<Inco1>CFR</Inco1>
<Inco2>Stuttgart</Inco2>
<Verkf/>
<Webre>X</Webre>
<Minbw>15.00</Minbw>
<Xersy>X</Xersy>
<Delkz />
</item>
</ItEkorg>

SAP/ERP → ONV

(/ONV/ORDERS05)

ImportXslResource: /SAP/ONVENTIS/XSL_IN_OrderS05_Order.xsl
No parameter added, extended the standard logic

Field Onventis	DB-Field Onventis	XML Segment	XML	Type (SAP)
IncotermsVersion	IncotermsVersion; L: 4	E1EDK17	LKTEXT (if QUALF=VER)	char4

Example:

<E1EDK17 SEGMENT="1">
<QUALF>001</QUALF>
<LKOND>CFR</LKOND>
<LKTEXT>IncoLocation1</LKTEXT>
</E1EDK17>
<E1EDK17 SEGMENT="1">
<QUALF>VER</QUALF>
<LKTEXT>2010</LKTEXT>
</E1EDK17>
<E1EDK17 SEGMENT="1">
<QUALF>002</QUALF>
<LKTEXT>IncoLocation1</LKTEXT>
</E1EDK17>
<E1EDK17 SEGMENT="1">
<QUALF>003</QUALF>
<LKOND>CFR</LKOND>
<LKTEXT>IncoLocation2</LKTEXT
</E1EDK17>

Logic Explained:

a. Possibility 1: E1EDK17 with QUALF = VER is present and <LKTEXT> contains a valid value (2010 or 2020)

Action:

· Will Import the value into Onventis field IncotermsVersion.

· Also import the corresponding Code and Place, if provided via QUALF = 003.

b. Possibility 2: E1EDK17 with QUALF = VER is present but <LKTEXT> contains an invalid value (e.g., 1990, XYZ)

Action:

· Do not save the invalid value.

· Clear all three fields in Onventis:

o Incoterms Version

o Incoterms Code

o Incoterms Place

· Log warning message: “Imported Incoterms Version <value> is not supported. Only 2010 or 2020 are allowed”

c. Possibility 3: E1EDK17 with QUALF = VER is present but <LKTEXT> is empty (e.g., <LKTEXT></LKTEXT> or <LKTEXT/>)

Action:

· Clear Incoterms Version, Code, and Place in Onventis.

d. Possibility 4: No E1EDK17 segment with QUALF = VER exists in the XML

Action:

· Clear Incoterms Version, Code, and Place in Onventis.

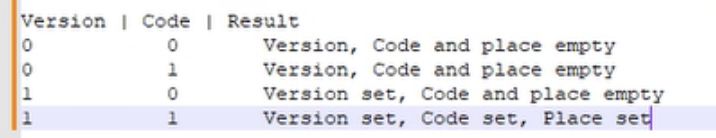

In the nutshell below is the combination logic :

(/ONV/CREMAS05)

ImportXslResource: SAP/ONVENTIS/ZCREMAS05_IN_SAPSupplier.xsl (Onventis.R4.BO.BC.Pipelines.SAP.SAPSuppliers)
Added a parameter “Import_IncotermsVersion” with default value “false”

Field Onventis	DB-Field Onventis	XML Segment	XML	Type (SAP)
IncotermsVersion	IncotermsVersion; L: 4	E1LFM1M	INCOV	char4

Example:

<E1LFM1M SEGMENT="1">
<LIFNR>0001001170</LIFNR>
<EKORG>1010</EKORG>
<ERDAT>20250211</ERDAT>
<ERNAM>ONVENTIS_CON</ERNAM>
<MINBW>0</MINBW>
<INCO1>CFR</INCO1> -- “Incoterms code”
<INCO2>Stuttgart</INCO2> -- “Incoterms place”
<PLIFZ>0</PLIFZ>
<VENSL>0.0</VENSL>
<MINBW2>0</MINBW2>
<INCOV>2010</INCOV> -- “Incoterms version”
...
</E1LFM1M>

Logic Explained:

When Import_IncotermsVersion = false

· We will not look for the Incoterm Version that was defined

· If the Incoterm Code is not sent, the Field remains empty (Version: Null, Code: Null, and location: Null)

· If the Incoterm Code is sent, fall back to Incoterm Version 2010

· But the code should be right (from 2010)

· If the code is not from Incoterms 2010, it will be blank (Version: 2010, Code: Null, and location: Null)

When Import_IncotermsVersion = true

· Will clear the following fields in Onventis (if previously set):

o Incoterms Version (INCOV)

o Incoterms Code (INCO1)

o Incoterms Place (INCO2)

· Log a warning if invalid value is sent in version field (e.g. anything other than 2010 or 2020) “Imported Incoterms Version <value> is not supported. Only 2010 or 2020 are allowed”

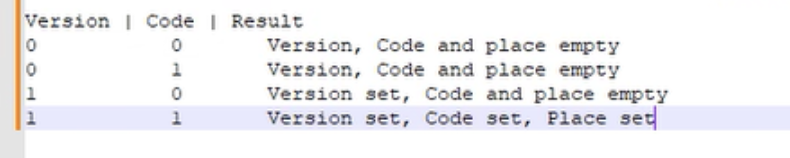

In the nutshell below is the combination logic :

Incoterm version in Enterprise Supplier Import and Export

Enterprise Supplier Export

ExportXslResource: EnterpriseStructure/XSL_OUT_Supplier.xsl (EnterpriseStructure/SQL_Supplier.xml)
No new parameter added, extension to standard logic

Field Onventis	DB-Field Onventis	XML	Type (SAP)
IncotermsVersion	IncotermsVersion; L: 4	IncotermVersion	char4

Example:

Note: The node is transferred as (<IncotermVersion>XYZ</IncotermVersion>), if a value is set in the GUI and the node is transferred as </IncotermVersion> if no value is set in the GUI

Enterprise Supplier Import

ImportXslResource: EnterpriseStructure\XSL_IN_Supplier.xsl (Onventis.R4.BO.BC.Pipelines.Enterprise.SupplierAdapter)
No new parameter added, extension to standard logic

Field Onventis	DB-Field Onventis	XML	Type (SAP)
IncotermsVersion	IncotermsVersion; L: 4	IncotermVersion	char4

Example:

Note: The node is transferred as (<IncotermVersion>XYZ</IncotermVersion>), if a value is set in the GUI and the node is transferred as </IncotermVersion> if no value is set in the GUI

In the nutshell below is the combination logic :
